Have you ever wondered if your alternator is working properly but don’t want to reinstall it in your car just yet? You’re not alone.
Testing an alternator outside the vehicle can save you time and hassle. It’s a simple process that can help you avoid future issues and ensure your car runs smoothly. Imagine the peace of mind knowing that your alternator is in perfect condition before putting it back in place.
This article will guide you through straightforward steps to test your alternator out of the car, using tools you likely already have. Get ready to empower yourself with the knowledge to keep your car’s electrical system in top-notch condition. Let’s dive in!
Credit: v8register.net
Tools And Equipment Needed
Testing an alternator outside of a car requires a few essential tools. A multimeter helps check voltage levels, while a battery charger powers the alternator during testing. Ensure you have a wrench set for securing connections.
When you decide to test an alternator out of the car, having the right tools and equipment is crucial. It’s not just about having the tools; it’s about having the right ones. This ensures accuracy in your testing and saves you from unnecessary frustration. Imagine trying to fix a watch with a hammer—you wouldn’t get very far. Likewise, testing an alternator requires precision.1. Multimeter
A multimeter is a must-have for this task. It allows you to measure voltage, current, and resistance. An accurate reading is essential to determine whether your alternator is functioning correctly. Make sure you know how to use it; a wrong setting can lead to inaccurate results.2. Battery Charger
A battery charger is necessary to simulate the car’s battery. It helps you provide power to the alternator during the test. Without it, you won’t be able to assess the alternator’s output effectively. Ensure the charger is in good condition to avoid complications.3. Jumper Wires
Jumper wires are used to connect the alternator to the battery charger and multimeter. They come in handy when making temporary connections. Make sure they are insulated and in good shape to prevent any short circuits. Have a variety of lengths available for convenience.4. Wrench Set
A wrench set is essential for loosening and tightening bolts on the alternator. You’ll need it to secure the alternator during testing. A loose connection can lead to incorrect readings. Always double-check that everything is tight before you start.5. Safety Gear
Safety should always be your priority. Wear safety glasses to protect your eyes from sparks or debris. Gloves can protect your hands from sharp edges or hot surfaces. Never underestimate the importance of safety gear—it’s your first line of defense.Testing an alternator outside of the car can feel daunting, especially if you’re not well-versed in mechanics. But with these tools and some patience, you can achieve accurate results. Have you ever tried testing an alternator on your own? What challenges did you face, and how did you overcome them?
Safety Precautions
Testing an alternator outside the car requires careful attention to safety. Without proper precautions, you risk injury or damage to your equipment. This section highlights essential safety measures to take.
Proper Protective Gear
Always wear safety gloves to protect your hands from electrical shocks. Use safety goggles to shield your eyes from sparks or debris. These basic protections are crucial.
Work In A Safe Environment
Choose a clean, dry workspace to avoid accidents. Ensure the area is well-ventilated to prevent inhaling harmful fumes. A clutter-free space reduces the risk of tripping.
Disconnect Power Sources
Ensure the alternator is disconnected from any power source. This prevents accidental shocks or short circuits. It’s a simple step that safeguards against electrical hazards.
Use Proper Tools
Select the right tools for testing the alternator. Avoid using damaged or inappropriate equipment. Proper tools ensure accurate testing and prevent injury.
Understand The Equipment
Familiarize yourself with the alternator’s components before testing. Knowing where each part is reduces errors. This understanding helps in handling the equipment safely.
Identifying Alternator Components
When you need to test an alternator out of the car, the first step is understanding its components. Knowing how each part functions can help you diagnose issues effectively. This knowledge makes the testing process smoother and saves you from costly mistakes.
My first experience with alternators was daunting. I remember staring at the device, clueless about what each part did. But once I learned about its components, the process became much simpler. It’s empowering to know exactly what you’re dealing with.
Alternator Housing
The housing is the outer shell that protects the internal components. It’s usually made of durable metal. You’ll find mounting brackets on the housing for installation purposes. Is yours showing signs of wear or damage?
Rotor
The rotor is a crucial component. It rotates inside the alternator to generate electricity. Inspect it for any signs of damage or wear. A faulty rotor can lead to inefficient performance and impact your vehicle’s power.
Stator
The stator consists of wire coils. These coils work with the rotor to produce alternating current. Check if the coils are intact and free from corrosion. A damaged stator can disrupt the alternator’s output.
Voltage Regulator
The voltage regulator maintains the output voltage. It ensures your car battery receives the right charge. Look for signs of malfunction, such as irregular voltage levels. Are you experiencing battery issues recently?
Diode Rectifier
The diode rectifier converts AC to DC. This is essential for charging the battery. Test the rectifier for faulty diodes. Faulty diodes can lead to insufficient battery charging. Is your battery frequently going dead?
Have you ever felt overwhelmed by car repairs? Identifying alternator components can turn that feeling around. Knowing what each part does empowers you to make informed decisions. Can you imagine tackling alternator issues with confidence? Start by examining each component closely. Your car—and your wallet—will thank you.
Credit: www.familyhandyman.com
Preparing The Alternator For Testing
Testing an alternator out of the car requires careful preparation. Start by securing the alternator on a stable surface. Check connections and ensure all components are accessible for accurate testing.
Preparing your alternator for testing is a crucial step in diagnosing and fixing car electrical issues. Whether you’re a seasoned mechanic or a DIY enthusiast, understanding the preparation process ensures accurate results. Let’s dive into how to get your alternator ready for testing, ensuring you have all the necessary tools and know-how.Gather The Necessary Tools
First, make sure you have the right tools on hand. A multimeter is essential for checking voltage levels. You’ll also need a wrench set to handle bolts and connections. Having a clean workspace is crucial, so clear your area of clutter. Consider investing in a bench test stand for more precise testing. This tool allows for a controlled environment, giving you a clearer picture of the alternator’s performance. Remember, preparation is half the battle.Inspect The Alternator For Damage
Before starting the test, give your alternator a thorough visual inspection. Look for signs of wear such as frayed wires or burnt smells. These could indicate deeper issues that might affect test results. Assess the condition of the pulley and bearings; any wobbling or excess noise can signal a mechanical failure. It’s better to know upfront if these parts need replacement.Clean The Alternator Components
Cleaning is essential for accurate testing. Dust and debris can interfere with connections and give false readings. Use a soft brush to remove dirt from the alternator body and terminals. Consider using a mild cleaner to wipe down surfaces, ensuring no residues remain. A clean alternator not only tests better but also performs efficiently in your vehicle.Secure The Alternator Properly
Securing the alternator is crucial for safety and accuracy. Make sure it’s firmly placed on your test stand or workspace. Loose setups can lead to inaccurate readings and potential damage. Check all connections, ensuring they are tight and secure. A loose wire can ruin the test, leading you to chase non-existent problems. Double-check everything before proceeding. Now that your alternator is prepared, you’re one step closer to understanding its condition. Have you ever wondered if you’ve overlooked a simple issue while testing? Taking these preparation steps can prevent such scenarios, saving you time and effort.Testing With A Multimeter

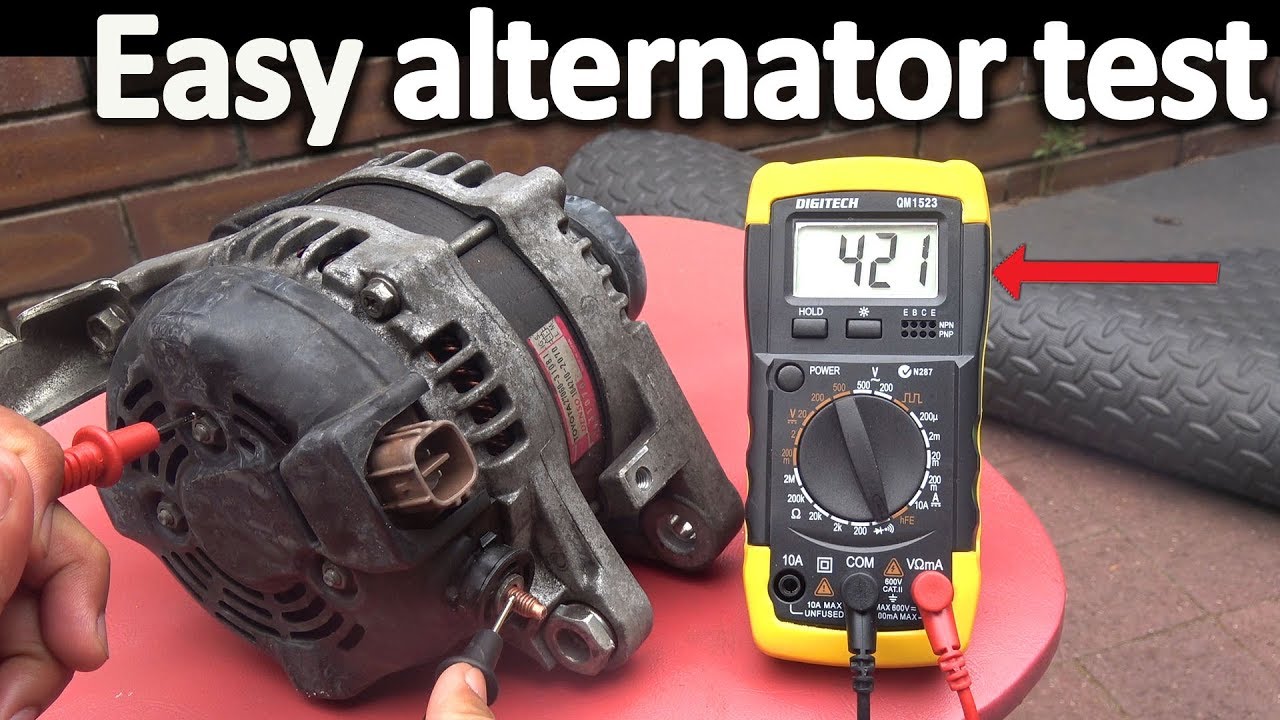

Testing an alternator outside the car can seem challenging. A multimeter simplifies the process. This tool measures electrical properties. You can check voltage output and resistance levels. These checks confirm the alternator’s condition. Follow the steps below to ensure accurate results.
Checking Voltage Output
Set your multimeter to DC voltage. Connect the red lead to the alternator’s positive terminal. Place the black lead on the negative terminal. Your multimeter will display the voltage reading. A healthy alternator usually shows between 13.8 to 14.8 volts. If the reading falls below this range, the alternator might be weak.
Assessing Resistance Levels
Switch the multimeter to the ohm setting. This setting measures resistance. Connect the leads to the alternator terminals. Watch the multimeter reading closely. A low resistance indicates good condition. High resistance suggests internal issues. Check for breaks or corrosion on the terminals. These can affect resistance measurements.
Credit: www.youtube.com
Testing With An Alternator Tester
Testing an alternator out of a car requires an alternator tester. Connect the tester’s leads to the alternator. Check the readings to ensure proper function and voltage levels.
When your car’s electrical system acts up, you might suspect the alternator. But how can you be sure without the car? Enter the handy alternator tester, a tool that helps you diagnose issues even when the alternator is out of the vehicle. This is the method some seasoned mechanics swear by. You might think testing an alternator without the car is complex, but with the right approach, it’s a task you can handle.Setting Up The Tester
To start, you’ll need a reliable alternator tester. These gadgets are available at most auto parts stores. First, ensure the tester is properly connected to a power source. Then, connect the alternator to the tester using the provided cables. Remember, accuracy begins with a stable setup. Your tester will likely have different ports for various alternator models. Make sure you’re using the correct one for your alternator. Double-check the connections to avoid any mishaps. A secure connection is your first step to success.Interpreting Test Results
Once everything is set up, it’s time to run the test. The tester will provide readings that indicate the alternator’s health. You’ll want to see a voltage output within the manufacturer’s specified range. If it’s too low or high, there may be an issue. A good tester might even give you specific error codes. These codes can pinpoint problems like faulty diodes or voltage regulator issues. Refer to the tester’s manual to decode these messages. Understanding these results can save you both time and money. Engage with your tools, not just your car. Have you ever tested an alternator out of the car? It’s a skill that can come in handy more often than you think. It might seem daunting at first, but with patience and practice, you’ll master it. Remember, every test is a step closer to becoming a more confident car owner or mechanic.Troubleshooting Common Issues
Testing an alternator out of a car can feel like a daunting task, especially if you’re not an auto expert. But fear not—troubleshooting common issues is simpler than you might think. Whether you’re dealing with low output or high resistance, understanding these problems can save you time and money.
Dealing With Low Output
Low output from an alternator can often be traced back to the diode trio. This component is responsible for converting AC current to DC. If it’s faulty, your alternator won’t produce enough power.
Consider using a multimeter to check the diode’s performance. If the readings are off, replacing this small but crucial part may solve the issue.
Have you ever noticed flickering headlights or a slow battery charge? These are telltale signs of low output that you shouldn’t ignore. Addressing them promptly can prevent further damage to your vehicle’s electrical system.
Addressing High Resistance
High resistance is another common issue that can affect alternator performance. It often arises from corroded or loose connections. These can interrupt the flow of electricity, reducing efficiency.
Inspect the connections closely. Sometimes, a simple tightening or cleaning of the terminals can make a world of difference. If corrosion is evident, a wire brush can be your best friend.
Have you ever wondered why your alternator seems to work intermittently? High resistance could be the culprit. By keeping the connections clean and secure, you ensure a steady power supply.
Are you ready to tackle these issues head-on? With a bit of patience and attention to detail, you can diagnose and fix these common alternator problems, even out of the car.
Maintenance Tips
Maintaining your alternator is crucial for the longevity of your car’s electrical system. Even when testing an alternator out of the car, regular upkeep can prevent future problems and save you from unexpected breakdowns. It’s all about consistency and the right care. You don’t have to be a mechanic to keep your alternator in good shape; just a few simple tips can make a huge difference.
Regular Inspection
Regularly checking your alternator can catch issues before they escalate. Look for signs of wear, like frayed wires or loose connections. These can be symptoms of potential problems. If you notice anything unusual, address it immediately. It’s a good idea to check the alternator every few months. Think of it as a routine health check for your car’s heartbeat.
Cleaning And Care
Keeping the alternator clean can enhance its efficiency. Dirt and grime can accumulate over time, potentially affecting performance. Use a soft brush to gently remove dust. Avoid using water or harsh chemicals; they can damage components. Instead, opt for a specialized cleaner designed for electrical parts. Consider this: a clean alternator is a happy alternator.
Could your alternator be giving subtle signs that it needs attention? Being proactive with maintenance not only extends its life but also ensures your car runs smoothly. Remember, taking small steps now can prevent larger issues later. So, what’s stopping you from giving your alternator the care it deserves?
Frequently Asked Questions
Can You Test An Alternator Outside Of The Car?
Yes, you can test an alternator outside the car using a multimeter and a battery. Connect the alternator, measure voltage output, and check for proper functioning. Ensure safety precautions while handling electrical equipment. Testing outside the vehicle helps diagnose issues without needing full installation.
How Can I Check If An Alternator Is Bad?
Test the battery voltage with a multimeter. A bad alternator will show less than 13 volts when running. Check dashboard warning lights. Dim lights or slow electronic functions indicate alternator issues. Listen for unusual noises from the engine. Inspect for worn belts or faulty connections.
How To Test Alternator With Engine Off?
To test an alternator with the engine off, use a multimeter. Set it to DC voltage. Connect the multimeter’s red lead to the battery’s positive terminal and the black lead to the negative terminal. A healthy alternator should show a reading around 12.
5 to 12. 8 volts.
How To Check Alternator With Screwdriver?
To check an alternator with a screwdriver, place the screwdriver tip near the alternator pulley. If magnetic attraction occurs, the alternator is functioning. Ensure the engine is running during this test. Always be cautious to avoid any moving parts for safety.
Conclusion
Testing an alternator out of the car is simple. Follow the steps carefully. Ensure you have the right tools. Use a multimeter to check voltage. Look for consistent readings. This confirms the alternator works. Notice any unusual noises or vibrations.
These may indicate issues. Regular testing helps maintain vehicle health. Remember, proper function is vital. It keeps your car running smoothly. Share your findings with a professional if unsure. Safety first, always. With these tips, you can confidently test alternators.
Stay informed and keep your car in top shape.
