Is your car battery acting up? Perhaps your headlights are dimming or your car is struggling to start.
These could be signs of a faulty alternator. But before you rush to the mechanic and spend a hefty sum, why not check it yourself? With just a multimeter in hand, you can diagnose if your alternator is the culprit behind your car troubles.
Imagine the confidence you’ll feel knowing you can tackle this automotive mystery on your own. Plus, you’ll save both time and money. Ready to learn how to do it? Let’s dive into the simple steps that could make you the go-to car expert among your friends and family.

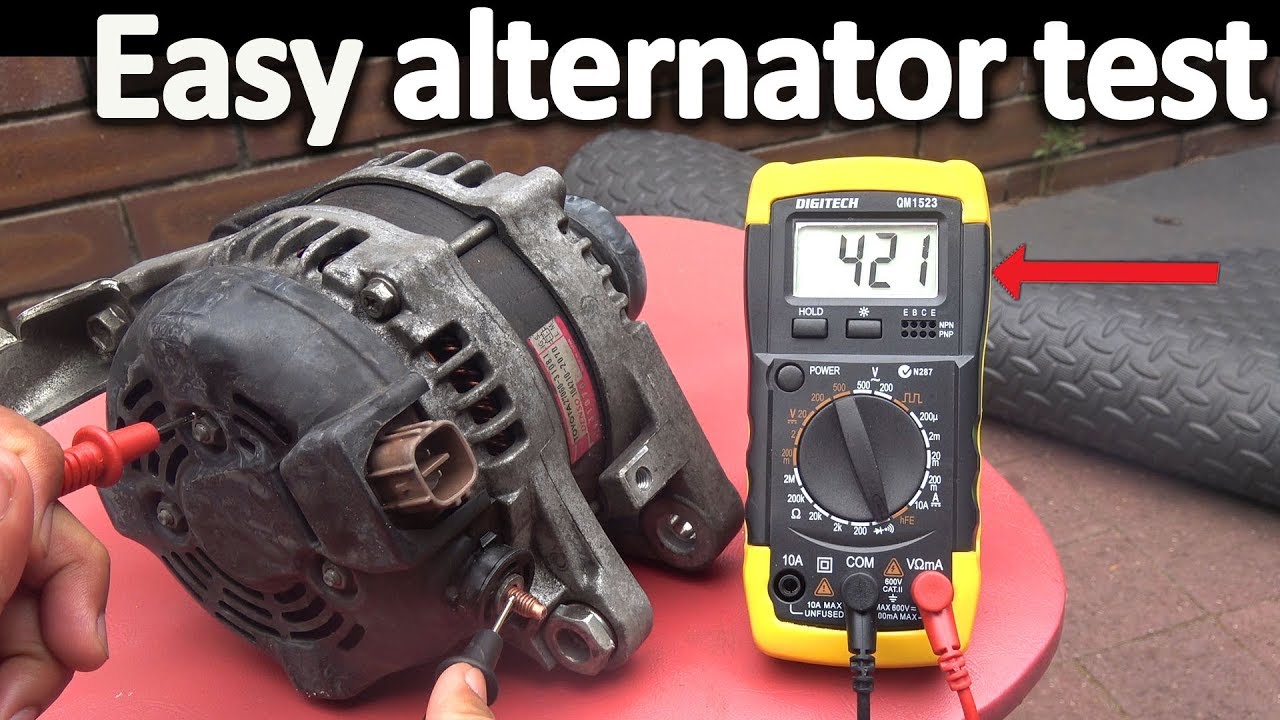

Credit: www.familyhandyman.com
Tools Required
A multimeter is essential to check a car alternator effectively. Ensure you have a reliable multimeter with voltage and current measuring capabilities. Safety gear like gloves and goggles is also recommended for protection during testing.
Checking your car’s alternator with a multimeter is a straightforward task. But before you dive into it, you need a few essential tools. It’s like packing your backpack for an adventure; having the right gear makes all the difference. Before you begin, ensure you have these tools at hand. Each serves a unique purpose in diagnosing your alternator’s health and helps you make informed decisions. Let’s explore the tools you’ll need, and why they’re important. ###Multimeter
A multimeter is the hero of this task. It measures voltage, current, and resistance, giving you a complete picture of your alternator’s functionality. Choose a digital multimeter for accuracy and ease. Why digital? It’s easier to read, especially when you’re working in dim garage lighting. Imagine trying to decipher tiny numbers on an analog display—it’s not fun. ###Safety Goggles
Safety first! Protect your eyes from any unexpected sparks or debris while checking the alternator. You wouldn’t want to risk an injury for a simple car check, right? Think of safety goggles as a shield. They might seem unnecessary at first, but they’ll keep you safe from any accidents that might occur during the process. ###Gloves
Wear gloves to protect your hands from grease and any sharp edges. They provide a better grip, ensuring you handle the multimeter confidently. Ever tried holding tools with slippery, greasy hands? Not a pleasant experience. Gloves make handling equipment easier and safer. ###Notebook And Pen
Keep a notebook and pen to jot down readings. Documenting your findings helps track changes over time and guides you in future checks. This practice is like keeping a health diary for your car. You’ll thank yourself later when you need to compare past and present data. ###Flashlight
A flashlight helps you see in dark engine compartments. It’s crucial for spotting details that might be missed otherwise. Imagine trying to locate connections in a shadowy corner without proper lighting. A flashlight ensures nothing escapes your keen eye. ###Basic Toolkit
A basic toolkit might include wrenches and screwdrivers. These are useful for removing covers and accessing the alternator. Don’t you hate it when you need to remove a bolt and can’t find the right tool? A toolkit saves you from unnecessary frustration and delays. — With these tools, you’re ready to check your car alternator like a pro. Remember, it’s not just about having the tools; it’s about knowing how to use them effectively. What other tools have you found indispensable in your DIY car checks? Your insights could be the missing piece for someone else.Safety Precautions
Safety is crucial when working with car alternators and multimeters. Ensuring safety precautions are followed can prevent accidents and damage. Always prioritize your well-being before starting any electrical work on your vehicle.
Ensure Proper Gear
Wear protective gloves and goggles to shield from electrical sparks. This gear reduces the risk of burns and eye injuries. A sturdy work apron can protect your clothes.
Turn Off The Engine
Make sure the car engine is off before testing the alternator. An active engine can cause unexpected electrical currents. This step prevents electrical shock and potential harm.
Disconnect The Battery
Remove the battery connections to avoid electrical surges. This precaution stops accidental short circuits. Disconnecting the battery ensures a safer testing environment.
Check Multimeter Settings
Set your multimeter to the correct voltage range. Incorrect settings can lead to misleading results. Proper settings guarantee accurate alternator readings.
Work In A Dry Area
Ensure your workspace is dry and well-lit. Moisture can increase electrical hazards. A dry area minimizes the risk of electrical accidents.
Keep Metal Objects Away
Avoid contact with metal objects during testing. Metal can conduct electricity and cause short circuits. Keep tools and jewelry at a safe distance.
Locating The Alternator
Finding the alternator is simple. Look near the engine, usually on the front or side. Identify its belt connection and metal body to ensure accuracy before testing with a multimeter.
Locating the alternator in your car might seem daunting at first, but it’s easier than you think. This vital component is responsible for charging your car’s battery and powering the electrical system while the engine is running. Knowing where it is can save you time and money, especially when diagnosing electrical problems. So, grab your tools and let’s find that alternator.Where To Look Under The Hood
Pop open the hood of your car and take a moment to familiarize yourself with the engine layout. Typically, the alternator is located near the front of the engine, but its exact position can vary based on the make and model of your vehicle. Look for a small cylindrical component attached to the engine with a belt.Identifying The Alternator By Shape And Size
The alternator is usually a compact unit, often resembling a small metal drum. It’s connected to the engine by a belt, known as the serpentine belt. Don’t confuse it with the air conditioning compressor or the power steering pump, which might look similar but serve different functions.Using Your Car Manual
Consult your car’s manual for a diagram of the engine layout. This is your best friend when it comes to identifying parts under the hood. The manual will show you exactly where the alternator is located in relation to other engine components.Common Locations By Vehicle Type
In many sedans, the alternator is usually on the side of the engine, easily accessible. For trucks and SUVs, it might be a bit trickier, as it can be placed deeper within the engine compartment. Knowing the common locations can narrow down your search.Visual Cues To Spot The Alternator
Look for the tell-tale signs: a pulley attached to the alternator that drives the belt, and wiring harnesses connecting it to the electrical system. These visual cues help distinguish it from other parts that might look similar at first glance. Once you locate the alternator, you can proceed with checking it using a multimeter. But here’s a thought: how well do you know your car? Understanding its layout not only empowers you but also helps you tackle minor issues before they escalate.Setting Up The Multimeter
Setting up a multimeter is crucial for checking your car alternator. A multimeter helps measure voltage, current, and resistance. Before starting, ensure the multimeter is functioning properly. Check the battery and ensure the probes are not damaged.
Choosing The Right Mode
Selecting the correct mode on your multimeter is essential. For alternator testing, use the voltage setting. Locate the mode dial on your multimeter. Turn it to the “V” for volts. This setting allows you to measure the alternator’s output.
Adjusting The Settings
Once in the correct mode, adjust your multimeter settings. Set the range to measure 20 volts or more. This ensures accurate readings from the alternator. Connect the red probe to the positive terminal. Attach the black probe to the negative terminal.
Ensure the connections are secure. Loose connections can lead to incorrect readings. Double-check everything before proceeding. Now, you’re ready to test your alternator.
Testing Battery Voltage
Checking a car alternator with a multimeter involves measuring battery voltage. First, set the multimeter to DC voltage. Connect the probes to the battery terminals and read the voltage. A healthy alternator should show between 13. 8 and 14. 8 volts.
Testing the battery voltage is a key step in checking your car’s alternator. Using a multimeter, you can easily measure the battery’s voltage. This helps determine if the alternator is working properly. A battery’s voltage offers insights into the charging system’s health. Let’s explore the process with clear steps and explanations.Initial Voltage Check
Before starting your car, perform an initial voltage check. Set the multimeter to measure DC voltage. Connect the red lead to the battery’s positive terminal. Attach the black lead to the negative terminal. A healthy car battery should read between 12.4 and 12.6 volts. If the reading is below 12 volts, the battery may be weak.Interpreting Results
Understanding your multimeter’s readings is essential. A reading above 12.6 volts indicates a fully charged battery. If the voltage drops below 12.4 volts, the battery might not be holding a charge. This could signal an issue with the alternator. If the reading is around 12 volts or lower, consider further testing or consultation. Regular checks help maintain your car’s electrical system.Credit: www.autozone.com
Testing Alternator Output
Testing an alternator with a multimeter is simple. Connect the multimeter to the battery. Check for a voltage reading between 13. 8 and 14. 4 volts. This ensures your alternator is working properly. If the reading is lower, the alternator might need attention.
Testing the alternator output with a multimeter is a straightforward process that can save you both time and money. If your car has been experiencing electrical issues, this test helps determine if the alternator is the culprit. With a multimeter in hand, you can easily check if your alternator is functioning correctly, ensuring your car’s battery remains charged and your vehicle operates smoothly. Let’s dive into the process. ###Connecting The Multimeter
First, ensure your car is parked on a flat surface and the engine is off. Safety comes first, so keep the car in park or neutral and set the parking brake. Now, take your multimeter and set it to the DC voltage setting. Connect the red probe to the positive terminal of the battery and the black probe to the negative terminal. Remember, secure connections are key here. Loose connections might give you inaccurate readings, leading to wrong conclusions. ###Reading Voltage Output
Once connected, start your car’s engine and observe the multimeter display. A healthy alternator should produce a voltage between 13.5 and 14.5 volts. If the reading is below this range, your alternator might not be charging the battery effectively. A reading above this range could indicate an overcharging issue, which can damage your battery. Have you noticed dimming headlights or other electrical issues recently? This reading could explain why! ###Evaluating Performance
After noting the voltage output, consider the vehicle’s performance. Does it match the multimeter’s findings? If your alternator is not working properly, you might experience symptoms like slow engine cranking or electronic component malfunctions. Compare your readings with standard specifications for your vehicle model. It’s a good idea to consult your car’s manual or look online for these details. If your alternator isn’t performing as expected, it might be time to consult a professional mechanic. Why risk further damage when a quick check can set you on the right path? Taking the time to test your alternator output can prevent unexpected breakdowns. It’s a small step that ensures your car remains reliable and your drives stay worry-free.Troubleshooting Common Issues
Car alternators often face challenges that affect their performance. Identifying these issues early can save time and money. Using a multimeter helps pinpoint the exact problem. This tool measures the voltage output and other vital functions. Ensuring your alternator works well keeps your car running smoothly.
Low Output Causes
Low alternator output can lead to battery problems. Several factors can cause this issue. A worn-out belt might slip, reducing alternator efficiency. Faulty wiring or connections might disrupt the power flow. Dirt or corrosion can also affect the alternator’s function.
Potential Solutions
Inspect the alternator belt for signs of wear. Replace it if it appears damaged. Check all connections for tightness and corrosion. Clean any dirt or rust from the terminals. Ensure the multimeter reads the correct voltage output. A reading between 13.8 to 14.2 volts is ideal.
Credit: tameson.com
Maintaining Your Alternator
Checking your car alternator with a multimeter is simple. Start by setting the multimeter to DC voltage. Connect it to the battery terminals. A healthy alternator shows around 13. 8 to 14. 2 volts. Lower readings suggest issues. Regular checks ensure your car runs smoothly and avoids unexpected breakdowns.
Maintaining your alternator is essential to ensure your car runs smoothly. A well-functioning alternator keeps your battery charged and powers electrical systems while you’re driving. Neglecting it can lead to unexpected breakdowns, leaving you stranded. Regular maintenance helps you catch issues early, saving time and money. You might wonder how often you should check it and what signs indicate wear.Regular Checks
Regularly checking your alternator can prevent many common car troubles. Use a multimeter to check the voltage output. Connect it to the battery terminals and look for a reading between 13.5 to 14.5 volts when the engine is running. A lower reading could mean your alternator isn’t charging properly. Regular checks give you peace of mind, knowing your car’s electrical system is in good shape. Think about the last time your car battery died unexpectedly. Could it have been avoided with a simple check?Signs Of Wear
Spotting signs of wear early can save you from costly repairs. Listen for unusual noises when driving, like whining or grinding sounds. These can indicate the bearings are worn out. Dim lights or a warning battery light on your dashboard are red flags. If your car struggles to start, the alternator might be failing. Consider the last time you ignored a small issue, only for it to turn into a major problem later. What did you learn from that experience? Stay vigilant with these checks and observations. Your alternator is crucial for a reliable ride. Addressing issues promptly ensures your car’s longevity and your peace of mind.Frequently Asked Questions
How Do I Test My Alternator With A Multimeter?
To test your alternator, set the multimeter to DC voltage. Connect the red probe to the battery’s positive terminal and the black probe to the negative terminal. With the engine running, a healthy alternator should show 13. 8 to 14.
8 volts. If the reading is lower, the alternator may be faulty.
How Can You Tell If The Alternator Is Bad?
Signs of a bad alternator include dim headlights, battery warning light, strange noises, and electrical issues. Test voltage output using a multimeter. A healthy alternator typically provides between 13. 5 to 14. 5 volts. If it’s lower, consider professional inspection or replacement.
Regular maintenance can prevent alternator failure.
How To Check If Alternator Is Draining Battery With Multimeter?
Set the multimeter to DC amps. Disconnect the negative battery cable. Connect the multimeter between the negative battery post and cable. Observe the reading. A high reading indicates a parasitic drain. If the alternator causes the drain, disconnect it to see if the reading drops.
How To Tell If An Alternator Is Not Charging?
Check the battery warning light on the dashboard. Dim headlights or electrical failures indicate alternator issues. Test battery voltage; it should be between 13. 5 and 14. 5 volts when the engine runs. Inspect for damaged alternator belts or unusual noises.
Conclusion
Testing your car alternator with a multimeter is simple. This tool helps pinpoint issues quickly. Regular checks ensure your car runs smoothly. Detecting faults early can save you money on repairs. A properly working alternator extends your vehicle’s life. Safety and reliability improve with consistent maintenance.
Understanding multimeter readings is key. Practice makes the process easier over time. Always follow safety guidelines to avoid accidents. Checking your alternator is a smart habit. Your car will thank you with better performance. Keep this guide handy for future reference.
