To wire a car stereo without a harness, identify the speaker wires and the power wires, strip the insulation, and connect them directly using crimp connectors or soldering. Additionally, you will need to connect the ground wire to a metal surface in the car for a complete circuit.
Following these steps will allow you to wire a car stereo without a harness easily and efficiently.
Materials Needed
Before you embark on wiring your car stereo without a harness, it’s crucial to have the necessary materials at hand. The right tools and supplies will help you ensure a secure and long-lasting connection for your stereo system. Here are the essential materials you’ll need:
Wire Strippers
Wire strippers are indispensable when dealing with car stereo wiring. They allow you to remove the insulation from the wires, exposing the bare metal for a proper connection. Make sure you choose a wire stripper suitable for the gauge of wire you’re working with to ensure a clean strip without damaging the underlying conductor.
Electrical Tape
Electrical tape is a handy and affordable tool for securing and insulating your connections. It helps protect the exposed wires from any potential short circuits and keeps them from accidentally touching other metal surfaces, which could disrupt the electrical flow. Be sure to wrap the tape tightly around the connection, covering the exposed metal completely for optimal insulation.
Crimp Connectors
Crimp connectors are commonly used in automotive wiring as a reliable way to secure connections. They provide a strong and durable bond by crimping the metal sleeves onto the stripped wires. These connectors come in various types and sizes, so ensure you choose the appropriate one based on the gauge and number of wires you’re connecting.
Butt Connectors
Butt connectors are another type of connector you might need during the wiring process. These connectors are ideal for joining two wires end-to-end, providing a secure and enclosed connection. They often come with heat-shrink insulation, which can be activated using a heat source to offer additional protection against moisture, dust, and other potential hazards.
Soldering Iron
A soldering iron is an optional but recommended tool if you want to achieve the strongest and most reliable connections. It allows you to melt solder onto the wires, creating a permanent bond that is resistant to vibrations and corrosion. While soldering can be time-consuming and requires a bit of skill, it ensures a robust and long-lasting connection for your car stereo wiring.
Now that you have a clear understanding of the materials you’ll need for wiring your car stereo without a harness, you can proceed confidently and efficiently. Remember to prioritize safety by wearing appropriate protective gear, such as safety glasses and gloves, and take your time to make precise and secure connections for a high-quality audio experience in your car.
Preparations
Before you begin wiring a car stereo without a harness, it’s essential to make a few preparations. These preparations will ensure a smooth installation process while keeping you safe. In this section, we will cover the necessary steps you need to take before starting the wiring process.
Disconnect The Car Battery
The first step in any car modification is to disconnect the car battery. This step is crucial to prevent any electrical accidents while working with the wiring. To disconnect the car battery, follow these steps:
- Park your car in a safe area away from traffic.
- Locate the car battery, usually found under the hood.
- Identify the negative terminal, which is marked with a “-” sign.
- Using a suitable wrench or socket, loosen the negative terminal to disconnect it from the battery.
Remember, safety should always come first when working with electrical components, so be sure to disconnect the car battery before proceeding further.
Gather Necessary Tools And Materials
Once you’ve disconnected the car battery, you’ll need to gather the necessary tools and materials for the wiring process. Make sure you have the following items on hand:
- Wire strippers and crimping tool
- Electrical tape or heat shrink tubing
- Electrical connectors, such as butt connectors or bullet connectors
- Wire cutters
- Test light or multimeter
- A car stereo wiring diagram specific to your vehicle make and model
Having these tools and materials ready will ensure that you can complete the wiring process efficiently and effectively without any unnecessary interruptions.
Familiarize Yourself With The Car Stereo Wiring Diagram
Lastly, before diving into the wiring process, take the time to familiarize yourself with the car stereo wiring diagram. This diagram will provide you with the necessary information about the color codes and wiring connections for your specific car stereo.
You can typically find the wiring diagram in the user manual of your car stereo or by searching online using the make and model of your vehicle. Once you have the diagram, carefully examine it to understand the wiring connections.
Having a good understanding of the car stereo wiring diagram will prevent any confusion or mistakes during the wiring process and ensure that everything is connected correctly.
Identifying The Wires
Learn how to wire a car stereo without a harness by identifying the wires correctly. This step-by-step guide provides easy-to-follow instructions for a hassle-free installation.
When it comes to wiring a car stereo without a harness, the first step is to identify the wires. This is crucial in order to ensure the proper connection of the stereo and components, resulting in a functioning audio system in your car.
Locate The Car Stereo Wiring Harness
The first thing you need to do is to locate the car stereo wiring harness. This harness contains all the necessary wires for the various functions of the stereo system. In most cases, the wiring harness is located behind the stereo unit and can be accessed by removing the trim panel or dashboard.
Identify The Constant Power Wire
One of the most important wires to identify is the constant power wire. This wire provides power to the stereo system even when the ignition is turned off. It is usually colored yellow or red and is connected to the positive terminal of the car’s battery. To identify this wire, you can use a multimeter or a test light to check for a constant voltage even when the car is turned off.
Identify The Switched Power Wire
Another crucial wire to identify is the switched power wire. This wire provides power to the stereo system only when the ignition is turned on. It is often colored blue or orange and is connected to a switched power source, such as the ignition switch. To identify this wire, you can use a test light or multimeter to check for voltage only when the ignition is in the “on” position.
Identify The Ground Wire
The ground wire is an essential component of any electrical circuit, including your car stereo system. This wire provides a path for electrical current to return to the car’s battery. It is usually colored black or brown and is connected to a metal part of the car’s chassis. To identify the ground wire, you can visually inspect the wiring harness or use a multimeter to check for continuity between the wire and a known ground.
Identify The Speaker Wires
The speaker wires are responsible for transmitting the audio signals from the stereo to the speakers. These wires are usually color-coded and are connected to the corresponding terminals on the stereo unit. To identify the speaker wires, you can refer to the stereo manual or use a wiring diagram specific to your car’s make and model. Alternatively, you can use a multimeter to check for continuity between the wires and the speaker terminals.
Connecting The Wires
Discover how to wire a car stereo without a harness in this step-by-step guide. Learn the essential tools and techniques needed to connect the wires and enjoy high-quality sound in your vehicle.
Strip The Ends Of The Wires
Before connecting the wires of your car stereo without a harness, you will need to strip the ends of the wires. This process involves removing the insulation from the wire ends to expose the conductive metal for proper connection. To strip the ends of the wires:
- Use wire strippers to remove approximately 1/2 inch of insulation from the end of each wire.
- Be careful not to cut the metal strands of the wire while stripping the insulation.
Twist Together The Matching Wires
Once the ends of the wires are stripped, you will need to twist together the matching wires to ensure a secure electrical connection. Match the wires based on their color coding or use a wiring diagram specific to your car stereo model. Here’s how to twist together the matching wires:
- Identify the wires that have the same color coding and strip the insulation from their ends.
- Hold the matching wires side by side and twist them together by hand, ensuring a tight and secure connection.
Secure The Connection With Crimp Connectors Or Butt Connectors
After twisting together the matching wires, it’s crucial to secure the connection to prevent any loose or exposed wires. There are a couple of options to secure the connection:
- One option is to use crimp connectors. Crimp connectors are small metal cylinders with a plastic insulation covering that can be crimped onto twisted wires using pliers or a crimping tool. Ensure that the crimp connectors are properly attached to both wires to create a strong and reliable connection.
- Another option is to use butt connectors. Butt connectors are similar to crimp connectors but have a tubular shape that allows you to insert twisted wires into each end. Use crimping pliers to squeeze the connector, securing the wires in place.
Wrap The Connections With Electrical Tape
Once the wires are securely connected using crimp connectors or butt connectors, it’s essential to protect the connection from any potential damage or short circuits. Wrapping the connections with electrical tape will provide an added layer of insulation. Follow these steps:
- Starting from the base of the crimp connectors or butt connectors, wrap several layers of electrical tape around the connection, making sure to cover the exposed metal and insulation of the wires.
- Ensure that the electrical tape is tightly wrapped and there are no gaps or loose ends to prevent any potential issues.
By following these steps, you can confidently wire your car stereo without a harness, connecting the wires securely for optimal audio performance.
Alternatives To A Wiring Harness
When it comes to wiring a car stereo, using a wiring harness is the most common and preferred method. However, there may be situations where you don’t have a harness available or it may not be compatible with your specific car model. In such cases, there are alternative methods you can use to wire your car stereo without a harness. In this article, we will explore three common alternatives: using a wiring adapter, splicing into the existing wires, and using a stereo installation kit.
Using A Wiring Adapter
One alternative option to wire a car stereo without a harness is to use a wiring adapter. A wiring adapter is a device that allows you to connect the wires from your car stereo directly to the wiring harness of your vehicle. It functions as a bridge between the stereo and the car’s electrical system.
To use a wiring adapter, you will need to determine the specific adapter that is compatible with your car’s make and model. You can find this information by consulting the user manual of your car or by doing a quick online search for your car’s wiring adapter.
Once you have the correct wiring adapter, follow these steps:
- Disconnect the negative terminal of your car’s battery to avoid any electrical accidents.
- Locate the wiring harness of your vehicle. It is usually located behind the car stereo.
- Connect the wires from your car stereo to the corresponding wires on the wiring adapter, following the color-coding provided.
- Plug the wiring adapter into the wiring harness of your vehicle.
- Reconnect the negative terminal of your car’s battery.
Splicing Into The Existing Wires
If you don’t have access to a wiring adapter or prefer a more direct method, you can splice into the existing wires of your car. Splicing involves cutting the wires and connecting them together using electrical connectors or soldering.
To splice into the existing wires, follow these steps:
- Disconnect the negative terminal of your car’s battery.
- Identify the wires that correspond to power, ground, speakers, and other necessary connections. This information can typically be found in your car’s wiring diagram.
- Carefully strip the insulation off the wires you want to splice into, ensuring you have enough exposed wire to make a secure connection.
- Using electrical connectors or soldering, connect the wires from your car stereo to the corresponding wires in your vehicle.
- Secure the connections by wrapping them with electrical tape or using heat-shrink tubing.
- Reconnect the negative terminal of your car’s battery.
Using A Stereo Installation Kit
Another option to wire a car stereo without a harness is to use a stereo installation kit. This kit includes a mounting bracket, trim pieces, and other necessary accessories to install the stereo in your car.
To use a stereo installation kit, follow these steps:
- Disconnect the negative terminal of your car’s battery.
- Remove the existing stereo from your car’s dashboard.
- Install the mounting bracket included in the installation kit in the empty stereo slot.
- Connect the wires from your car stereo to the wiring harness included in the installation kit.
- Secure the stereo to the mounting bracket using the provided screws.
- Reattach any trim pieces that were removed.
- Reconnect the negative terminal of your car’s battery.
These alternative methods can help you wire a car stereo without a harness. Whether you choose to use a wiring adapter, splice into the existing wires, or use a stereo installation kit, make sure to refer to the user manuals of your car and stereo for specific instructions. Remember to prioritize safety by disconnecting the battery before making any electrical connections.
Testing The Connection
After completing the wiring process for your car stereo without a harness, it’s essential to test the connection to ensure everything is working properly. This step is crucial to ensure that you have successfully wired the car stereo and that it functions as expected. Below are the steps to follow when testing the connection:
Reconnect The Car Battery
The first step in testing the connection is to reconnect the car battery. Start by locating the positive and negative terminals of the battery. Once you have identified them, use a wrench or socket to reconnect the positive cable first, followed by the negative cable. Tighten the connections to ensure a secure fit.
Power On The Car Stereo
After reconnecting the car battery, turn on the car ignition to supply power to the car stereo. Take a moment to ensure that all the wiring connections are secure and properly insulated. Once you have confirmed this, proceed to power on the car stereo by pressing the power button or turning the knob, depending on the stereo model.
Test The Speakers And Other Functions
Now, it’s time to test the functionality of the car stereo. Start by adjusting the volume and listening for any sound coming from the connected speakers. If there is no sound or distortion, double-check the speaker connections and make sure they are properly wired. It’s also a good idea to verify that the balance and fade controls are working correctly.
Next, test other functions of the car stereo, such as the radio, CD player, auxiliary input, and Bluetooth connectivity. Make sure to switch between different audio sources to ensure they are functioning as intended. Test each function thoroughly, noting any issues or malfunctions that may arise.
By following these steps, you can confidently test the connection of your car stereo without a harness. Remember to pay close attention to the speakers and other functions to ensure a seamless audio experience while on the road.
Additional Tips And Considerations
When wiring a car stereo without a harness, there are a few additional tips and considerations to keep in mind. These tips can help ensure a successful installation and prevent any future issues. Whether you’re a seasoned DIY enthusiast or a beginner, taking the time to double-check your connections, secure loose wires and cables, and seek professional help if needed can make all the difference.
Double-check The Connections
Before finalizing your car stereo installation, it is crucial to double-check all your connections. One wrong connection can lead to faulty audio or failure of the entire system. Take the time to carefully match and connect the wires based on their corresponding colors and labels. You can refer to the car stereo’s manual or the wiring diagram for your specific vehicle model. It’s also a good idea to use a multimeter to test the continuity and ensure that each wire is connected properly.
Here are a few essential points to keep in mind when double-checking your connections:
- Make sure that each wire is securely attached to its designated connection point.
- Check for any loose or exposed wires that may cause short circuits or interference.
- Verify that the positive and negative wires are correctly connected to the appropriate terminals.
Secure Loose Wires And Cables
Once you have confirmed that all connections are correct, it’s important to secure any loose wires and cables. This step is crucial for both the safety and proper functionality of your car stereo system. Loose wires can lead to intermittent connections, audio distortions, or even damage to the components.
Here are a few tips to help you secure loose wires and cables:
- Use zip ties or cable clamps to bundle and secure the wires together. This not only keeps the installation tidy but also prevents any accidental tugging or pulling.
- If possible, route the wires away from moving parts or hot areas within the car to avoid potential damage.
- Consider using electrical tape or heat shrink tubing to cover exposed wire ends, providing insulation and protecting against short circuits.
Seek Professional Help If Needed
While installing a car stereo without a harness can be done successfully by many, there may be situations where seeking professional help is advisable. If you encounter difficulties, lack experience, or feel uncertain about any aspect of the installation, it’s best to consult an expert who can provide the necessary guidance and expertise.
If you decide to seek professional help, here are a few reasons why it’s a wise choice:
- Experienced professionals have the knowledge and tools to handle complex wiring and ensure a seamless installation.
- They can troubleshoot any issues that may arise during the process, saving you time and frustration.
- Professional installations often come with warranties, giving you peace of mind in case anything goes wrong in the future.
Remember, when it comes to your car’s stereo system, proper wiring is crucial for optimal performance and longevity. By double-checking your connections, securing loose wires, and seeking professional help if needed, you can enjoy a smooth and successful installation that will enhance your driving experience.

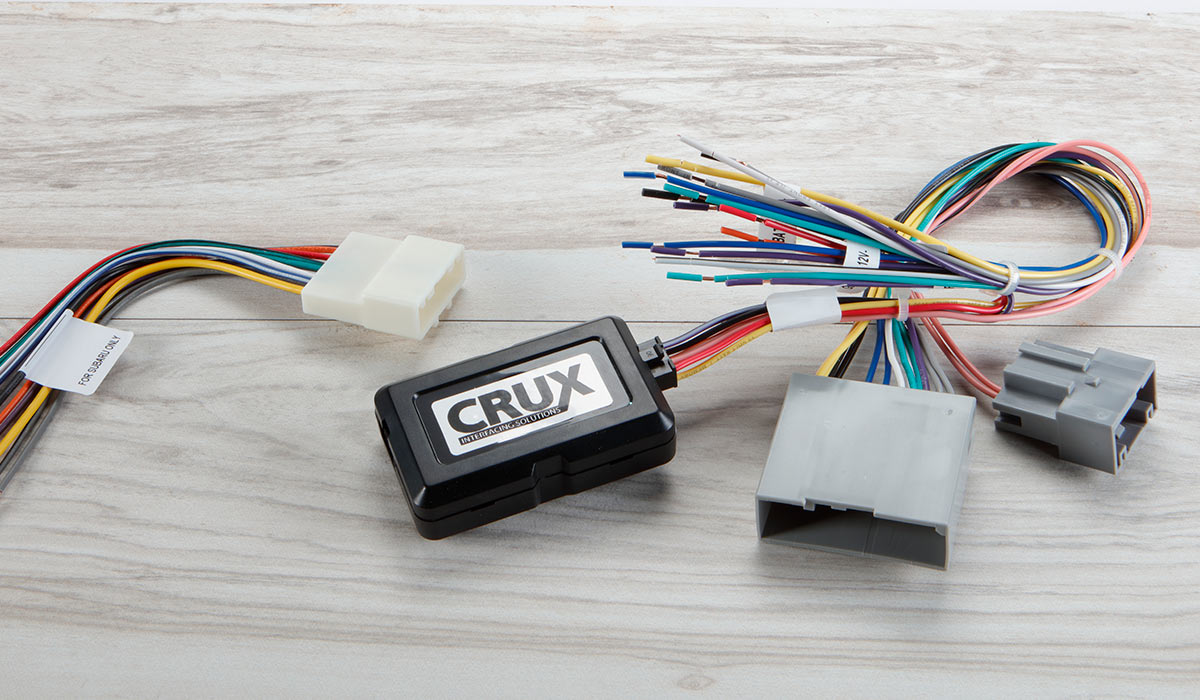

Credit: www.crutchfield.ca
Frequently Asked Questions For How To Wire A Car Stereo Without A Harness
Can I Wire A Car Stereo Without A Harness?
Yes, it is possible to wire a car stereo without a harness. However, it requires specific knowledge and expertise.
What Tools Do I Need To Wire A Car Stereo Without A Harness?
To wire a car stereo without a harness, you will need wire cutters, wire strippers, crimp connectors, electrical tape, and a wiring diagram for your specific car model.
Is It Recommended To Wire A Car Stereo Without A Harness?
While it is technically possible to wire a car stereo without a harness, it is generally not recommended. Using a harness ensures a proper connection and minimizes the risk of electrical issues or damage to your car’s wiring system.
Conclusion
Wiring a car stereo without a harness may seem daunting, but with the right approach, it can be done successfully. By following the step-by-step guide and using the necessary tools, you can customize your car’s sound system without the need for a harness.
Remember to double-check the connections and ensure proper insulation for a safe and reliable installation. With these tips, you’ll be enjoying your favorite tunes on the road in no time.
